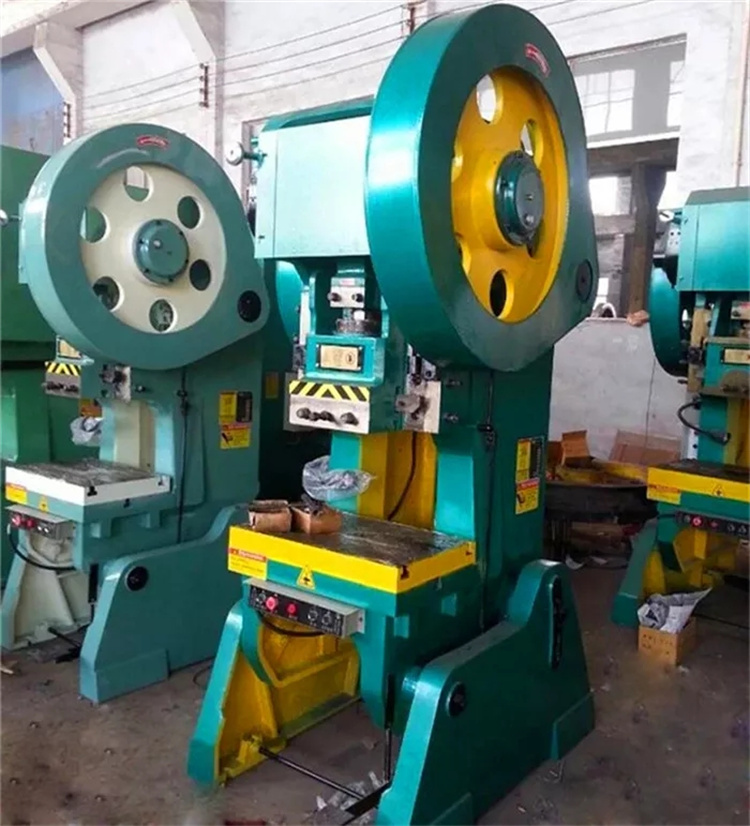

200 ton J23 c press mechanical punching machine

Xane / Products / 200 ton J23 c press mechanical punching machine

Features

  • J23 series are general open-tilting power press with simple structure ,reliable performance and easy operation .J23 can adopt rigid turn-key clutch .
  • So, it is convenient for operation and maintenance .J23 can also adopt emergency stop service to make the slider block suddenly stop on the range of 0-135 degree,and the photoelectrical protector device is optional .
  • J23-100B and J23-125 are special among the J23 series .Their main body is cast in iron .The cranked axle is settled vertically .Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23-100B and J23-125 enable to work with small impact and sationarity and make slider block stop at any position .

Applications

Specification

Specification
Units
JB23-40
JB23-63
JB23-63A
Zexta binavkirî
KN
400
630
630
Lêdana hêza binavkirî
mm
4
4
4
Slider stroke
mm
80
80
80
Hejmara lêdana slider
car/min
50
50
50
Bilindahiya mîhengê ya herî zêde
mm
230
250
300
Die set height eyar
mm
45
50
50
Dûrahiya ji navenda slider heya çarçovê
mm
220
250
250
Pîvana maseya xebatê
mm
390x630
420x650
470x750
Qûrahiya panela maseya xebatê
mm
70
70
80
Size of the handle hole
(diameter x depth)
mm
φ50x70
φ50x70
φ50x70
Dûr stûnên vertîkal
mm
330
320
390
Motora sereke
Cins
Y112M-4
Y132S-4
Y132S-4
Erk
KW
4
5.5
5.5
Goşeya zivirîna herî zêde ya laş
°
25
25
25
Pîvana giştî (LxWxH)
mm
1600X1100X2250
1740X1100X2560
1740X1180X2560
Pîvan
Kg
2960
3800
4300
