Products Description

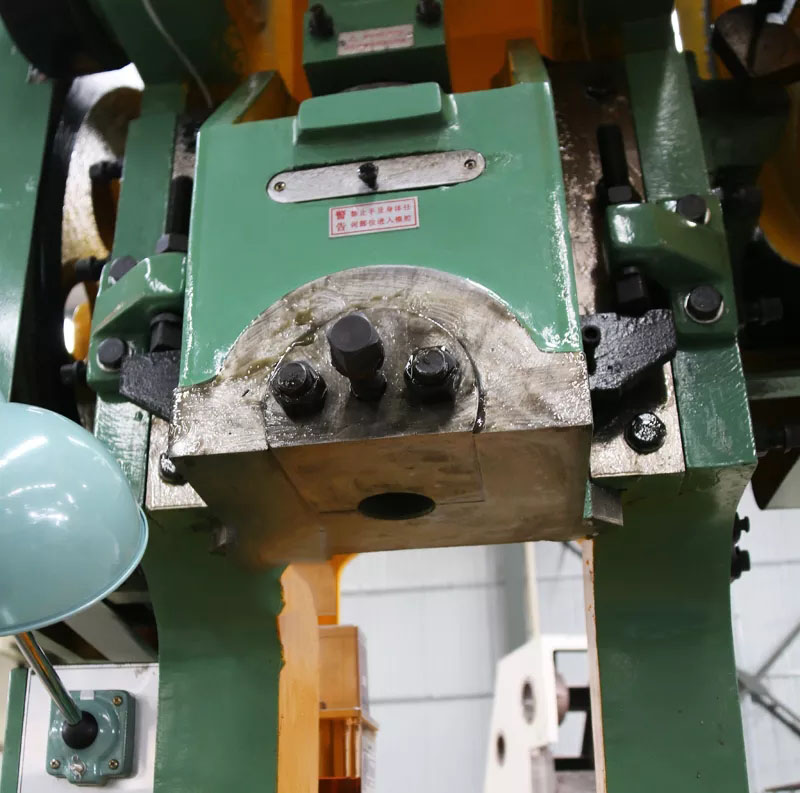

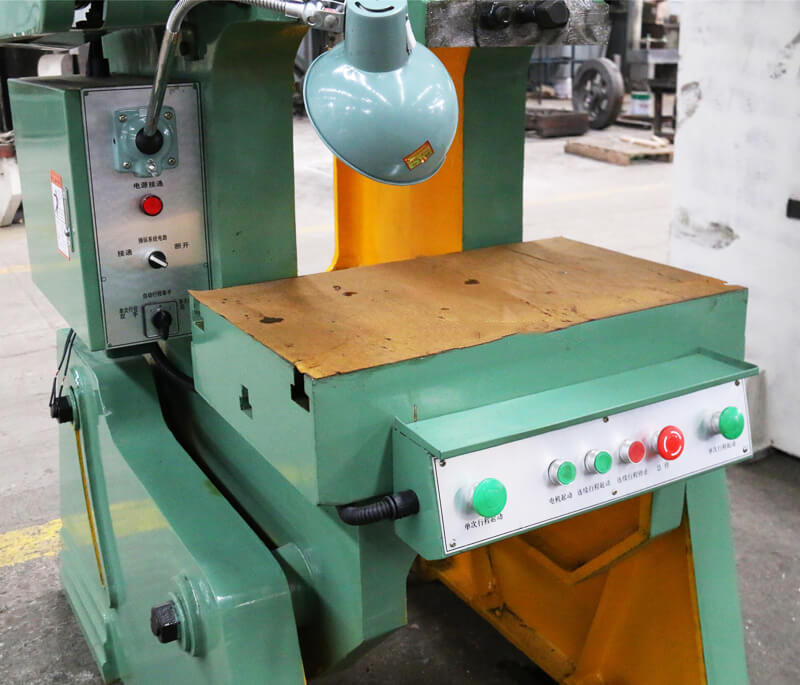

Details Display

The main performance characteristics:
1, Steel plate welding machine, good rigidity, more stable accuracy.
2, Crankshaft longitudinal, compact structure, beautiful appearance.
3, Electric adjustment of the height of the mould, digital display control height.
4, Rectangular block with a lengthened guide, bronze lining board, high guidance accuracy.
5, Combined pneumatic friction clutch brake, joint stable, action sensitivity.
6, Collapse type safety device, to ensure the safety of the whole machine.
7, Slider is high, there is a lifting type balance cylinder, to achieve the balance of the slider bar.
8, The slider can be moved with a small movement, emergency stop motion, more secure operation.
9, The circuit uses double valve control, the action is nimble, accord with the safety standard of press.

Application:
1, Suitable for blanking, punching, forming, bending, stretching and other cold stamping process to achieve.
2, Widely used in electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial areas.

Product main technical specification:

Specification
Units
JB23-40
JB23-63
JB23-63A
Zexta binavkirî
KN
400
630
630
Lêdana hêza binavkirî
mm
4
4
4
Slider stroke
mm
80
80
80
Hejmara lêdana slider
car/min
50
50
50
Bilindahiya mîhengê ya herî zêde
mm
230
250
300
Die set height eyar
mm
45
50
50
Dûrahiya ji navenda slider heya çarçovê
mm
220
250
250
Pîvana maseya xebatê
mm
390x630
420x650
470x750
Qûrahiya panela maseya xebatê
mm
70
70
80
Size of the handle hole
(diameter x depth)
mm
φ50x70
φ50x70
φ50x70
Dûr stûnên vertîkal
mm
330
320
390
Motora sereke
Cins
Y112M-4
Y132S-4
Y132S-4
Erk
KW
4
5.5
5.5
Goşeya zivirîna herî zêde ya laş
°
25
25
25
Pîvana giştî (LxWxH)
mm
1600X1100X2250
1740X1100X2560
1740X1180X2560
Pîvan
Kg
2960
3800
4300
